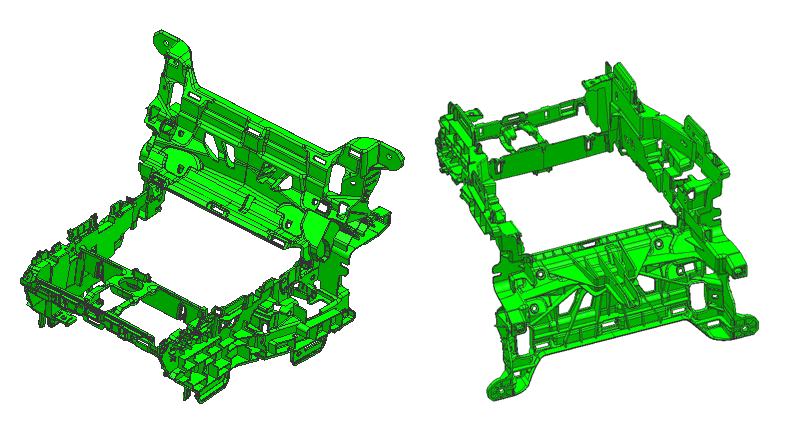

Part size: 393.51*369.99*264.37mm
Part material: PC/ABS
Cavity Number: 1
Runner System: 3 drop hot nozzles with valve gate directly on part and into cold runner then edge gate to part.
Steel: 1.2738HH HRC32-36
Design time: 2 weeks
Manufacture time: 8 weeks

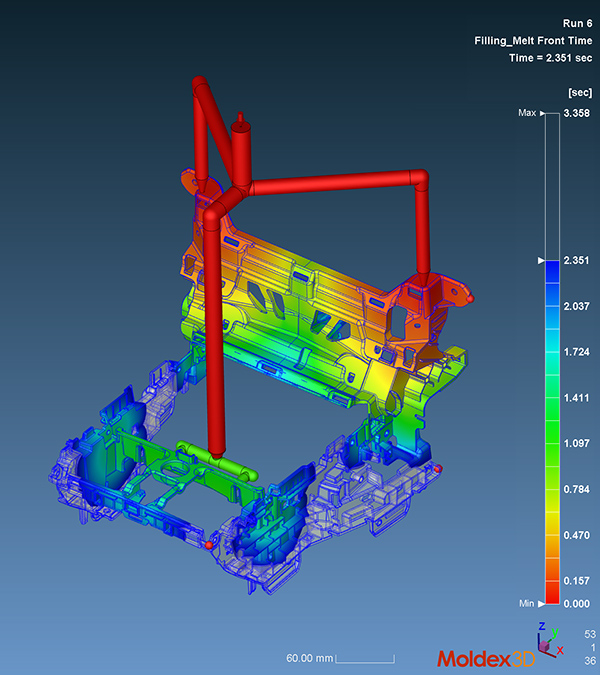

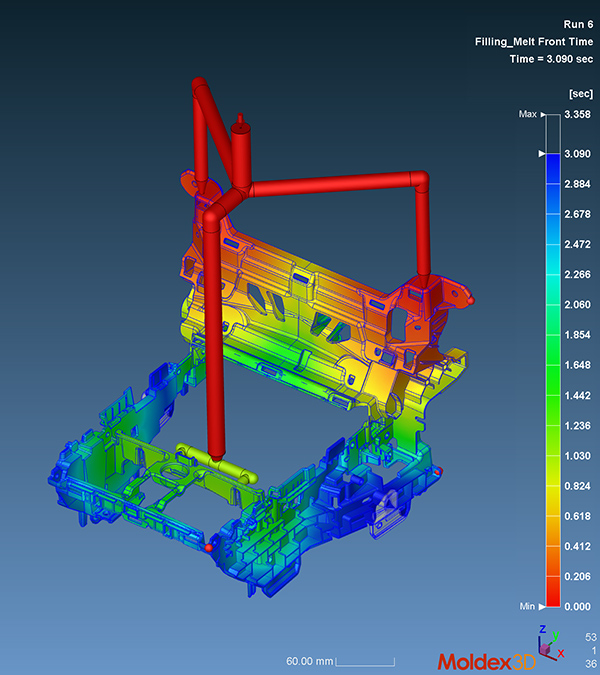

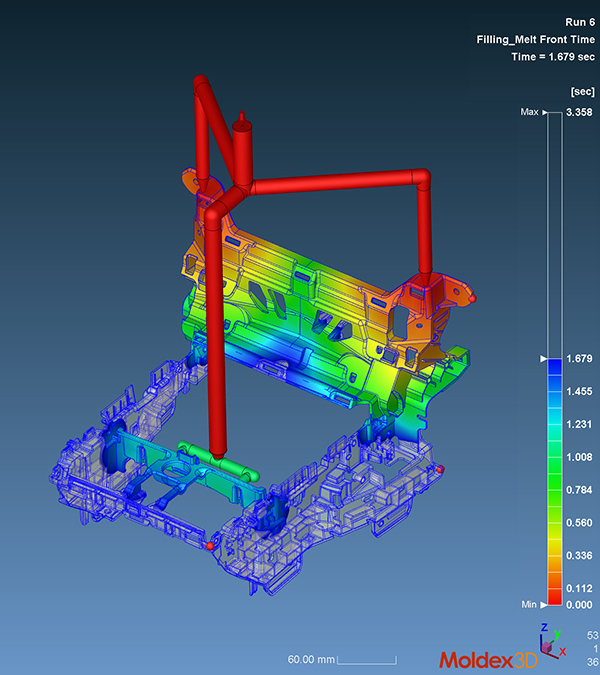

Mold flow

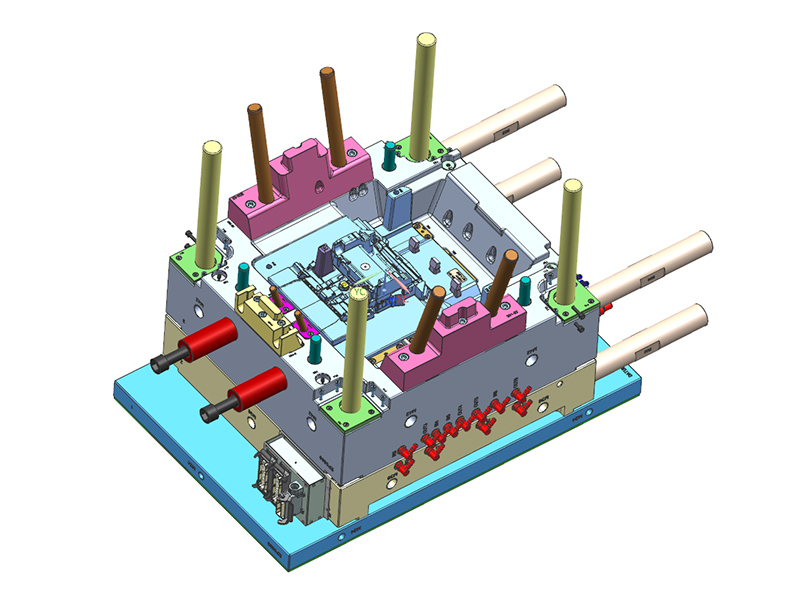

Mold Design

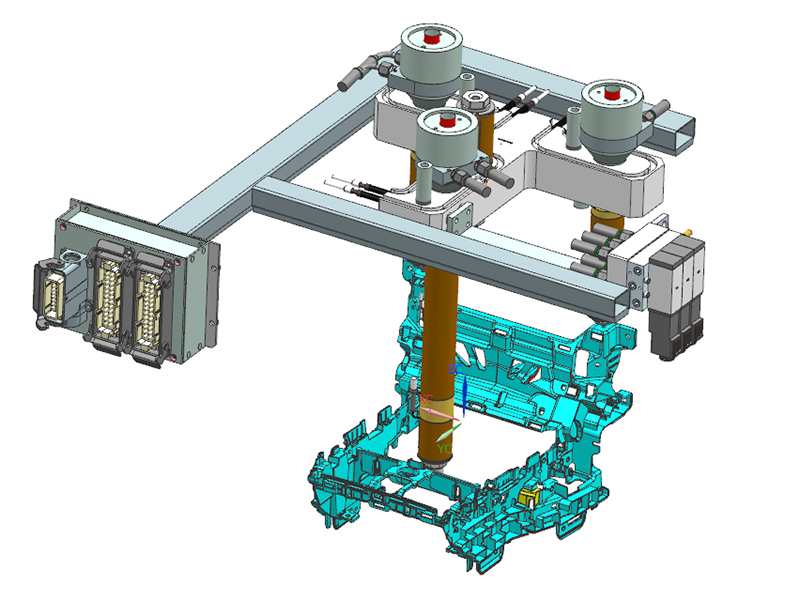

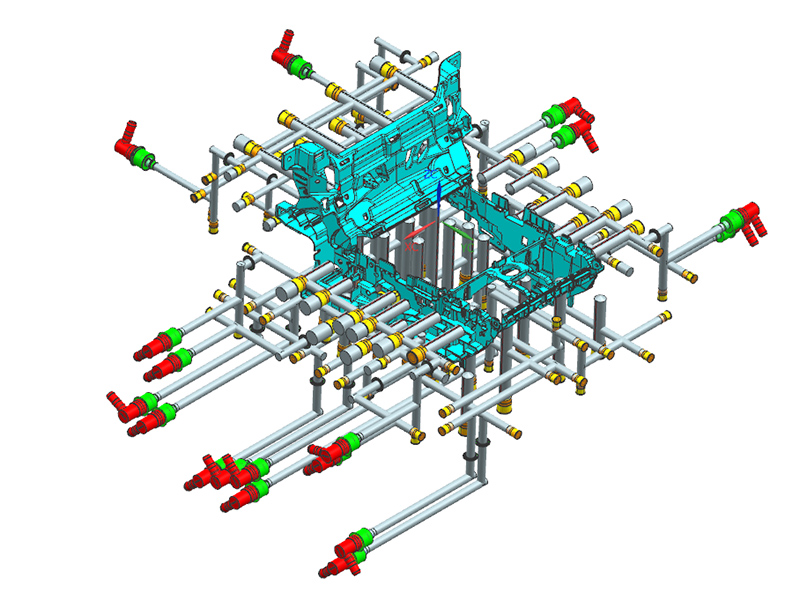

Runners

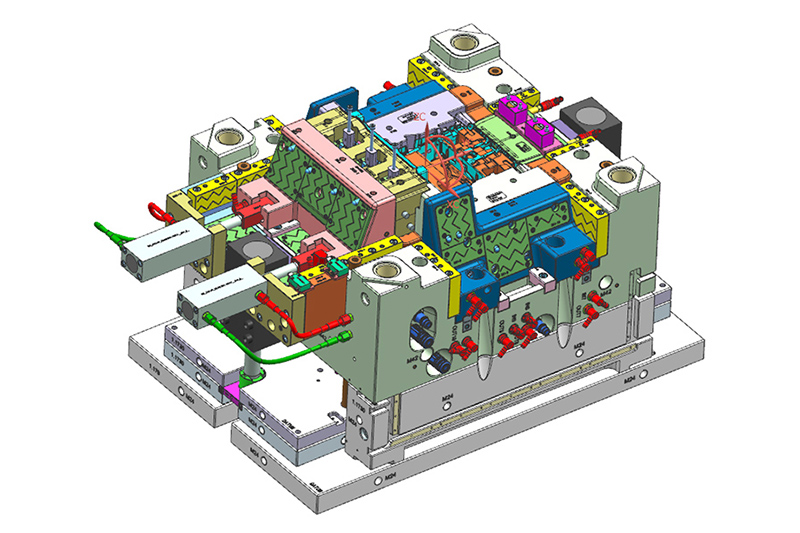

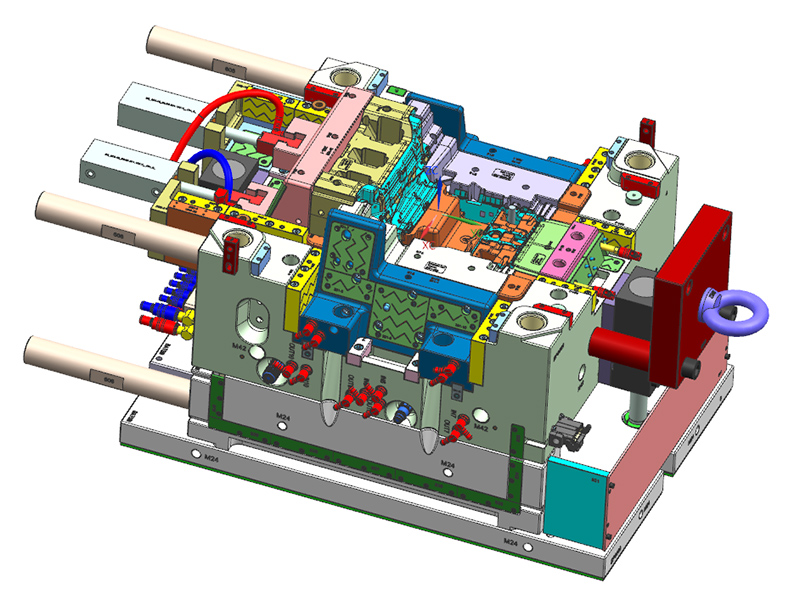

Mold Design
Mold Design
Cavity Cooling
Core Cooling

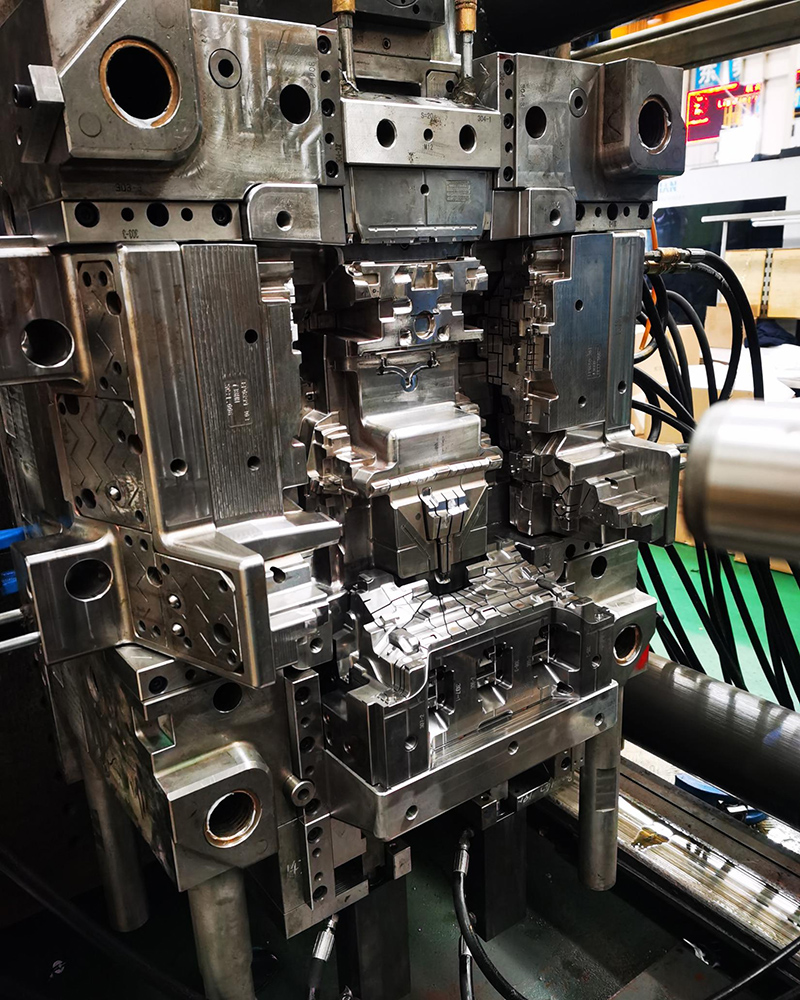

Cavity Side

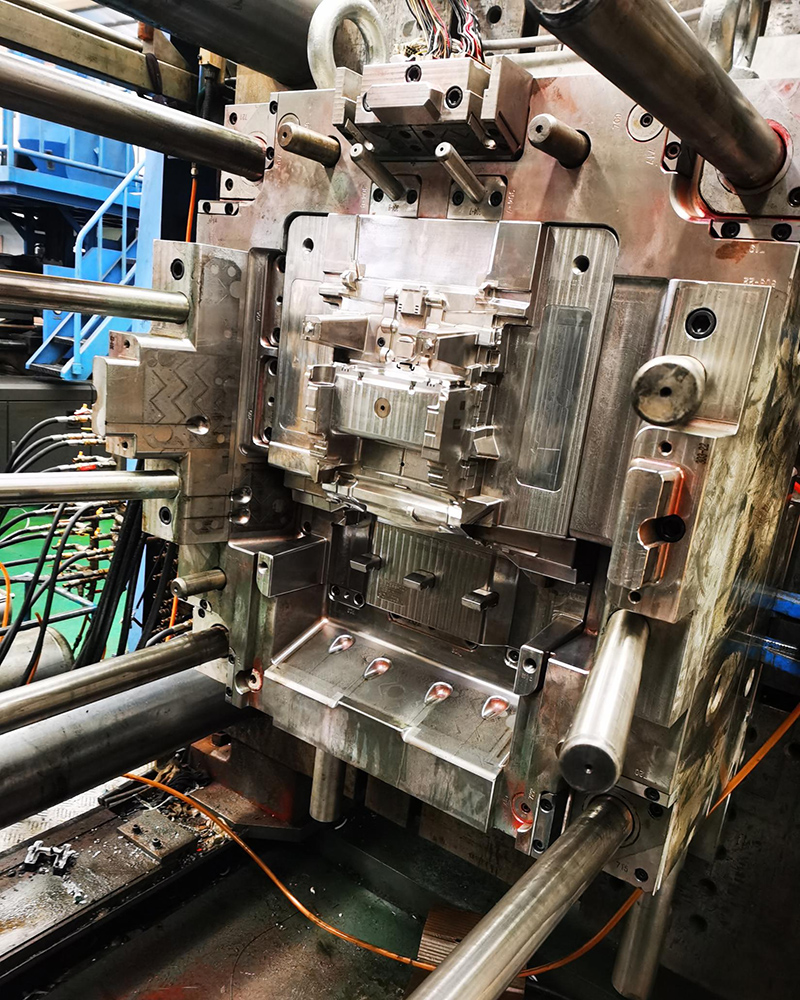

Core Side

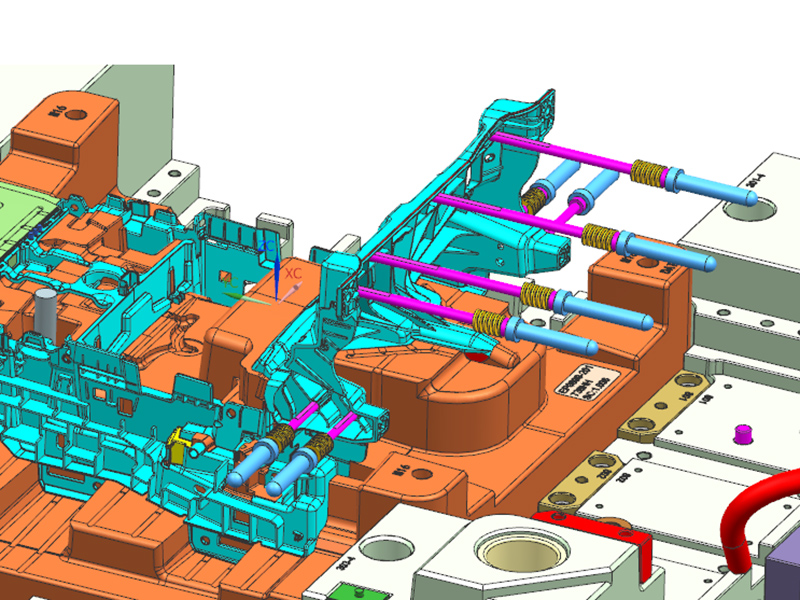

Ejectors on slide

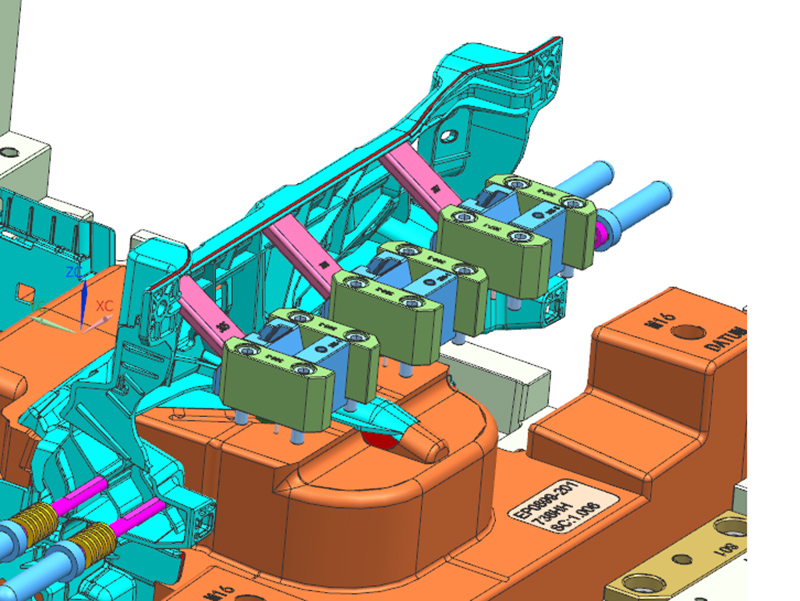

Obliqued slides

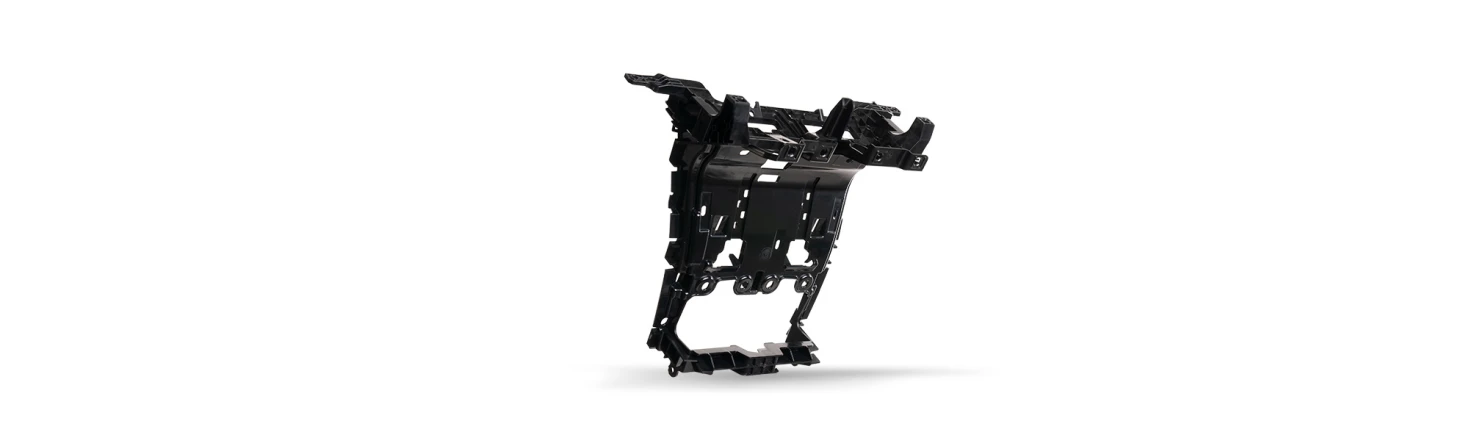

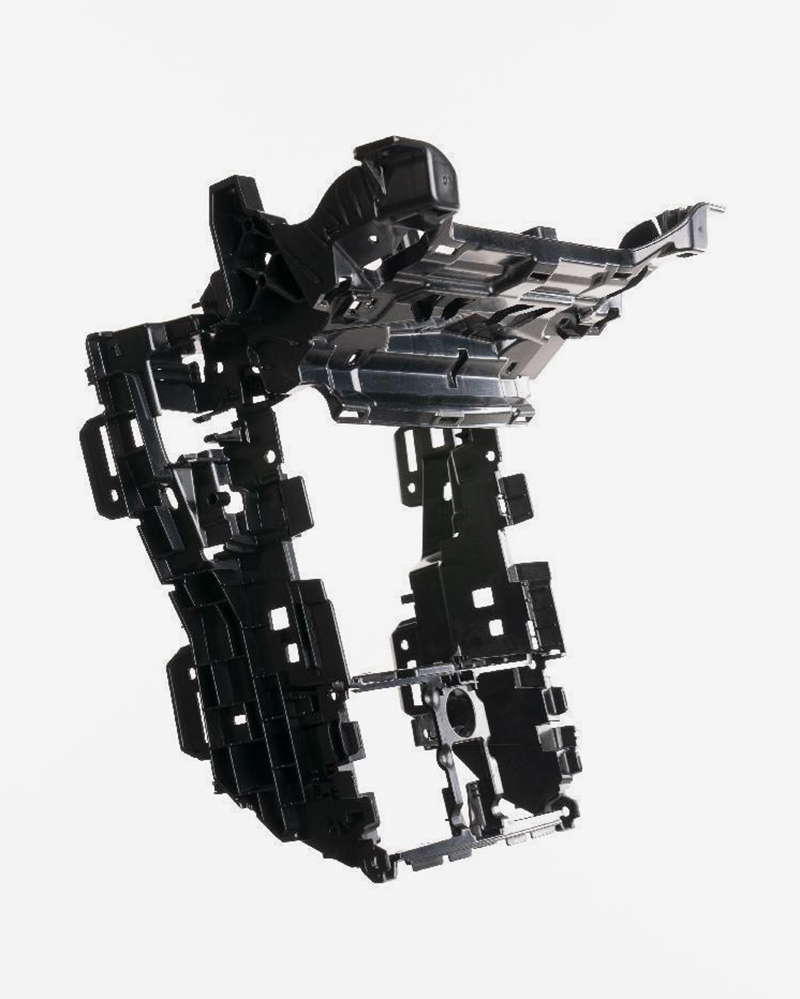

Part Picture
