Part size: Φ59*10.5mm
Part material: PK
Cavity Number: 8
Runner System: 8 drop hot nozzles into cold runner then 360°fan gate to part.
Steel: 1.2085 HRC50-52
Design time: 2 weeks
Manufacture time: 6 weeks
Mold flow

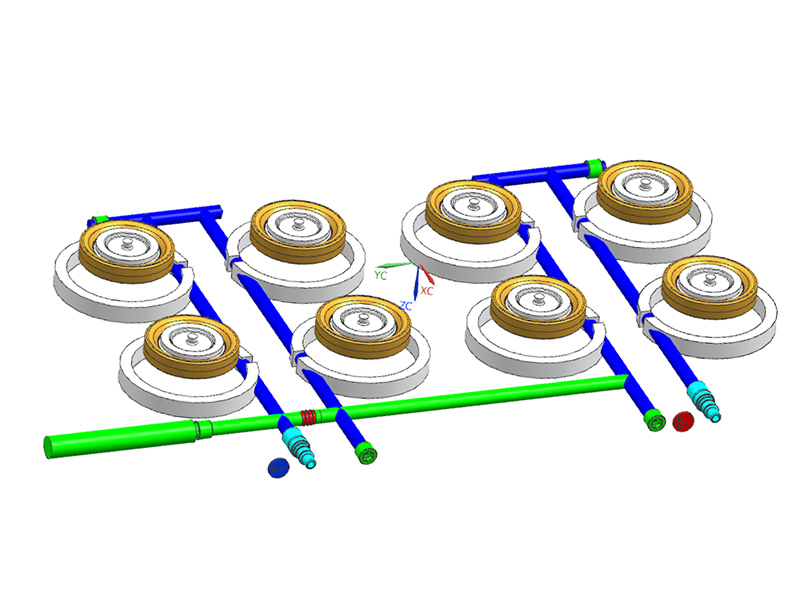

Runners

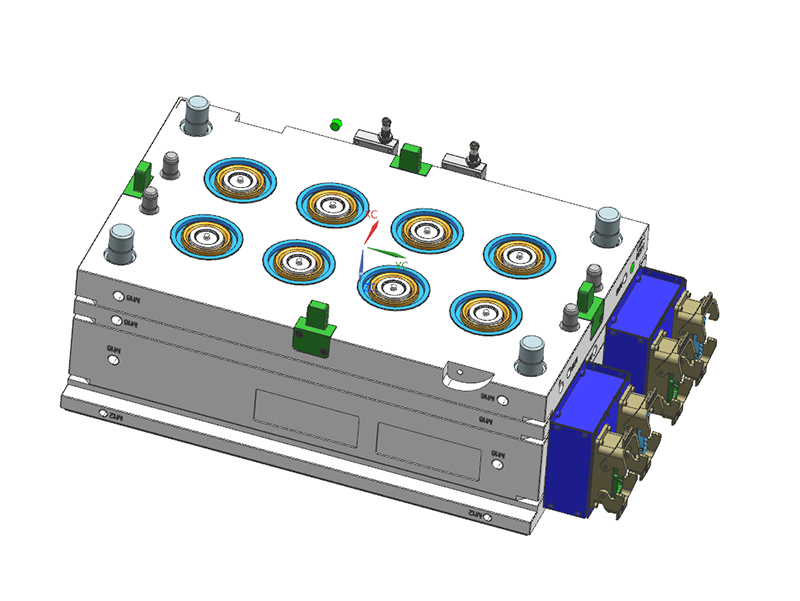

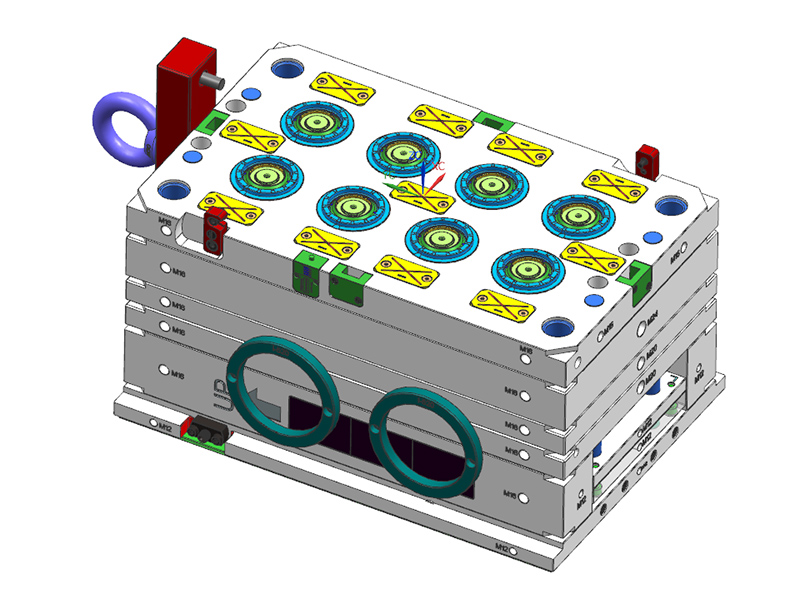

Mold Design

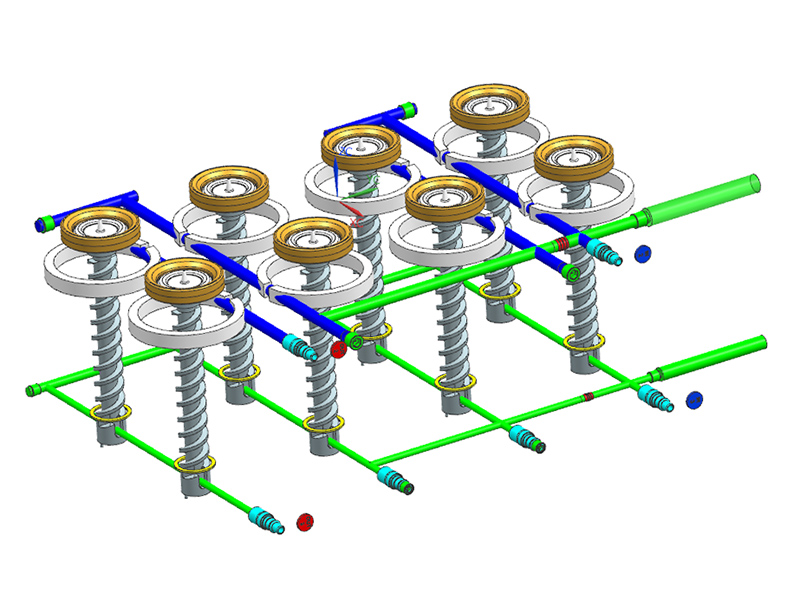

Cavity Cooling
Core Cooling

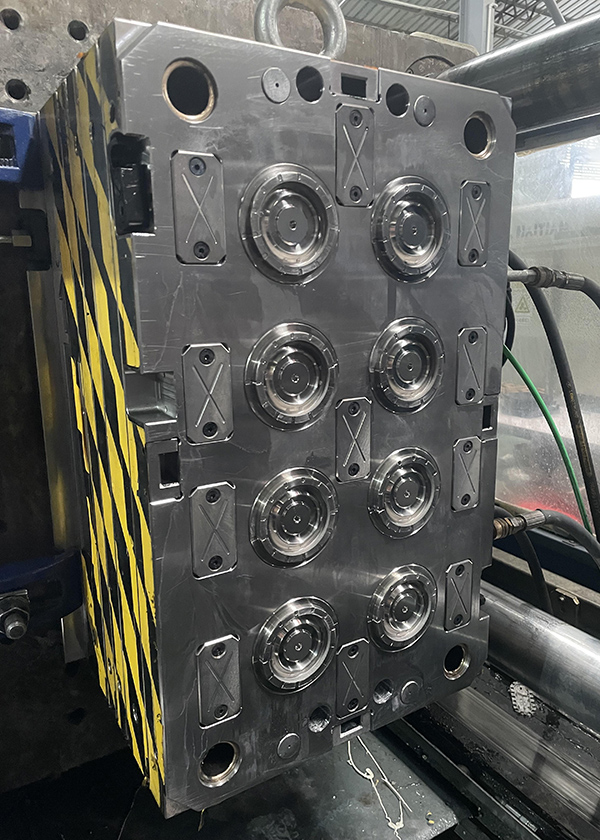

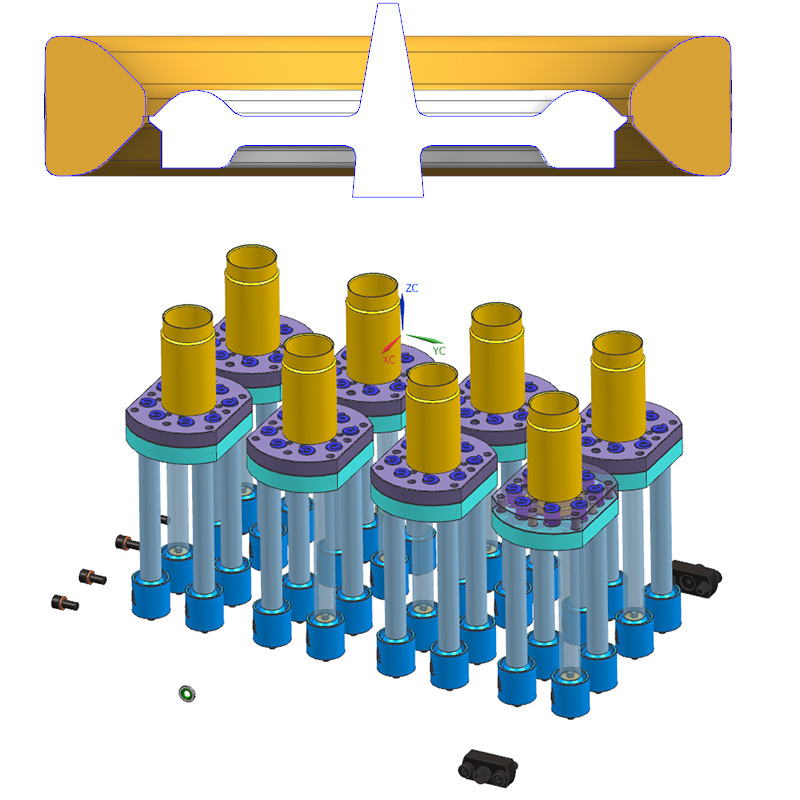

Cavity Side

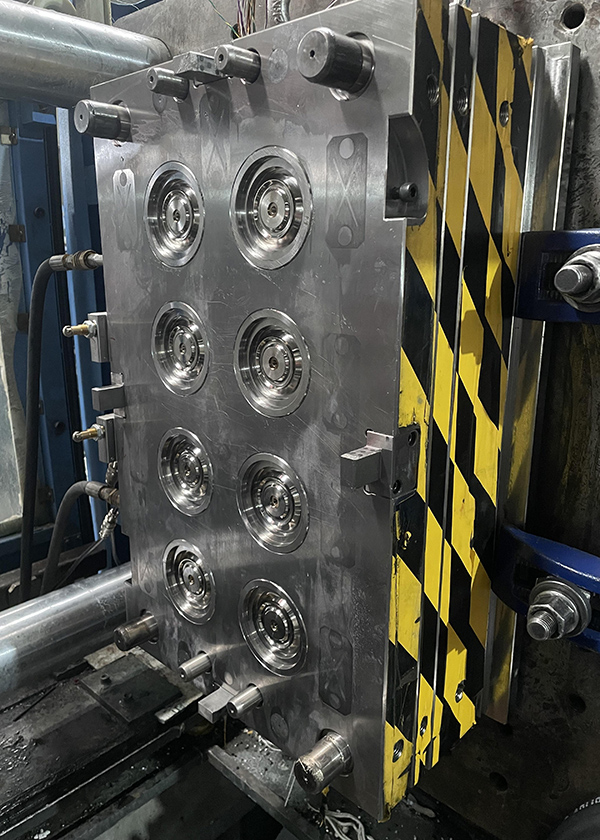

Core Side
 |  |

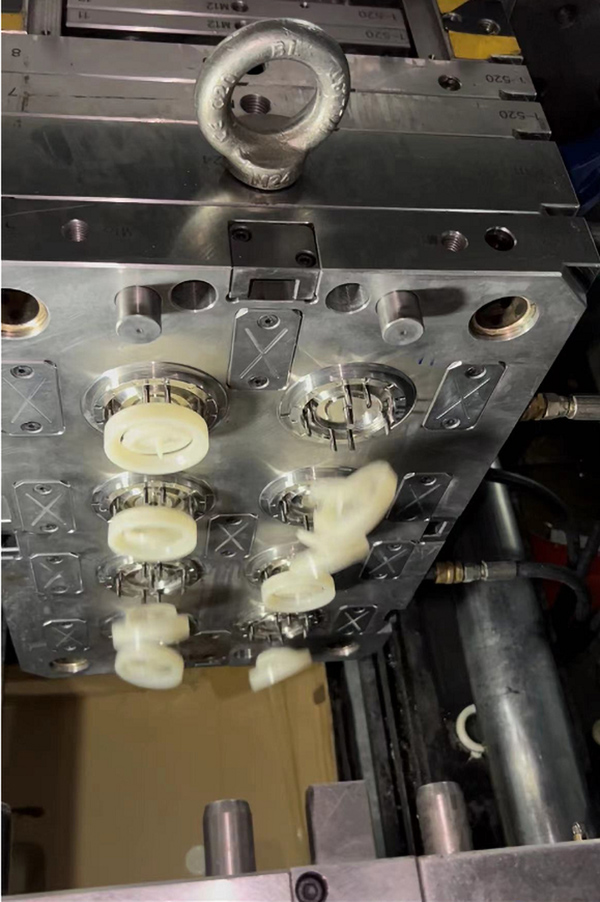

We kept safe steel for internal diameter, external diameter and height, in order to easy adjust them after FOT. | Part and cold runner has already degated before ejection. |

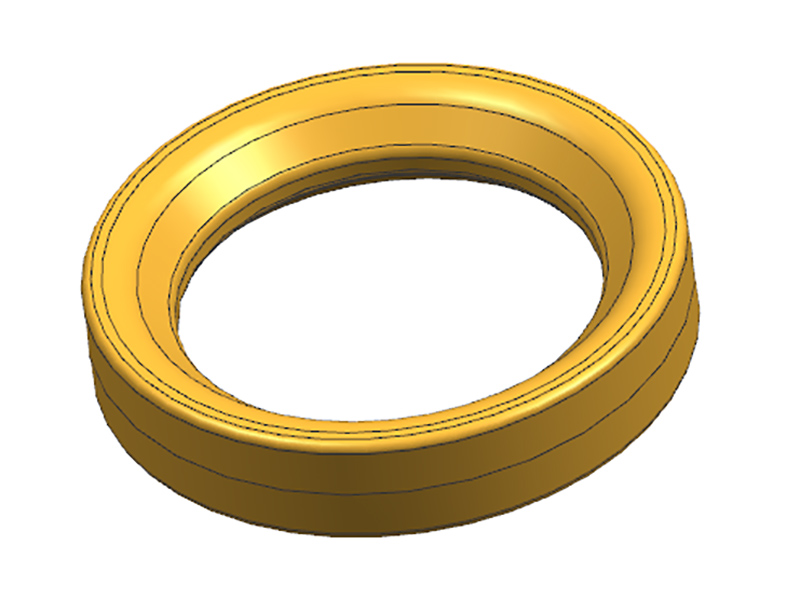

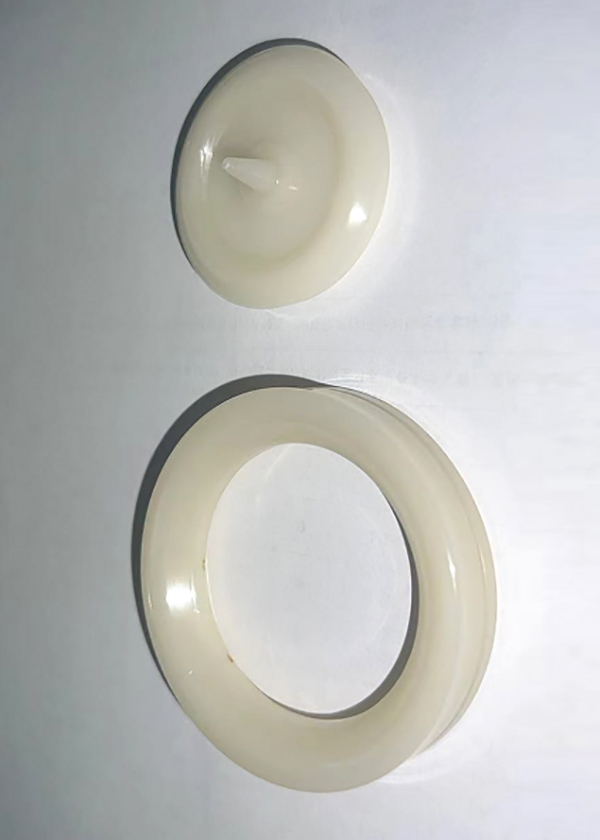

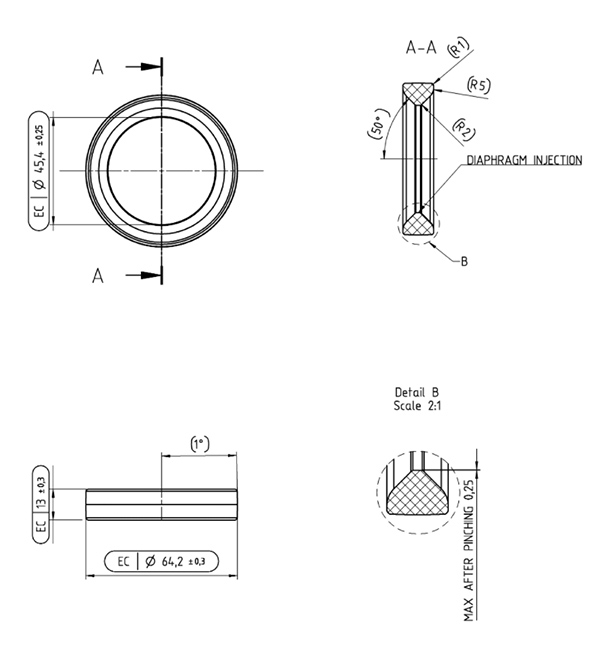

Part Picture
